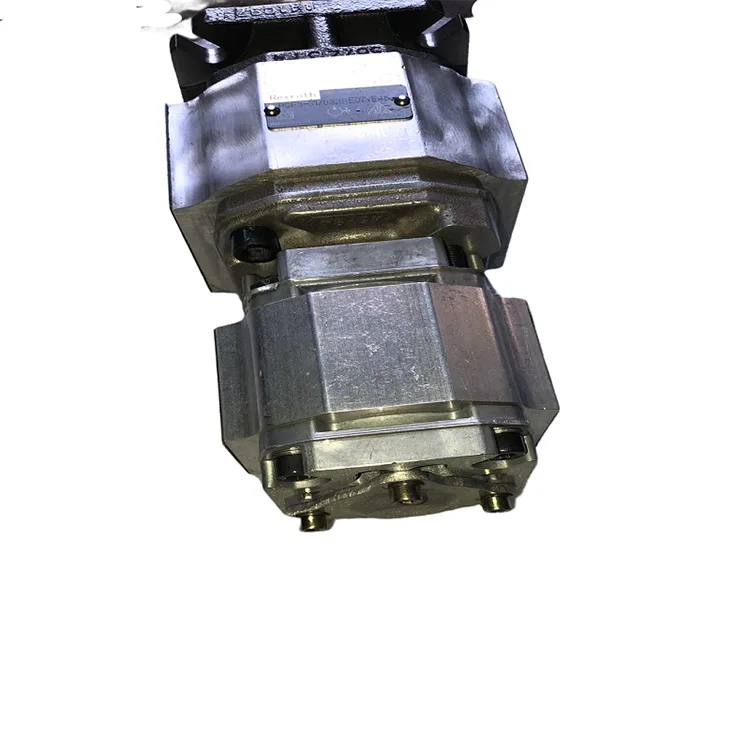

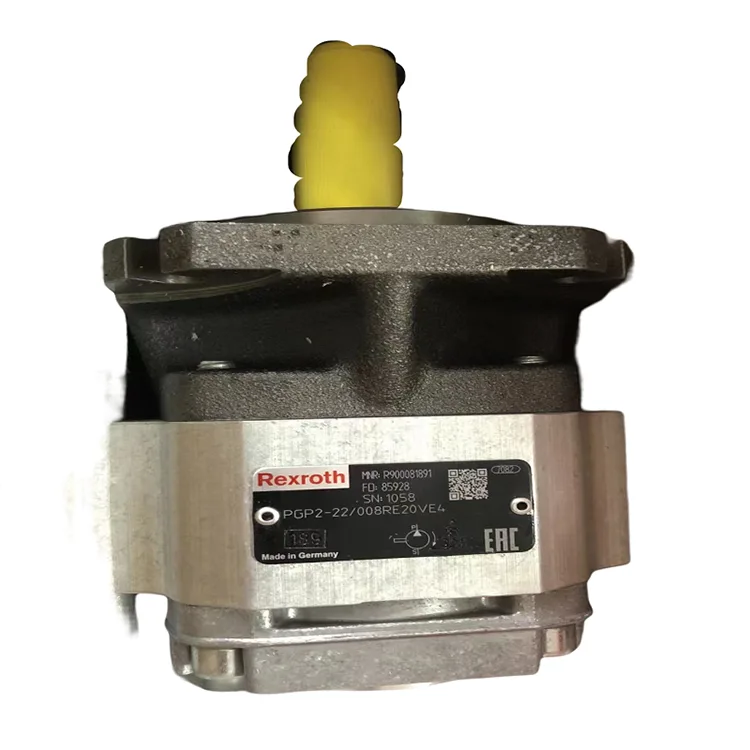

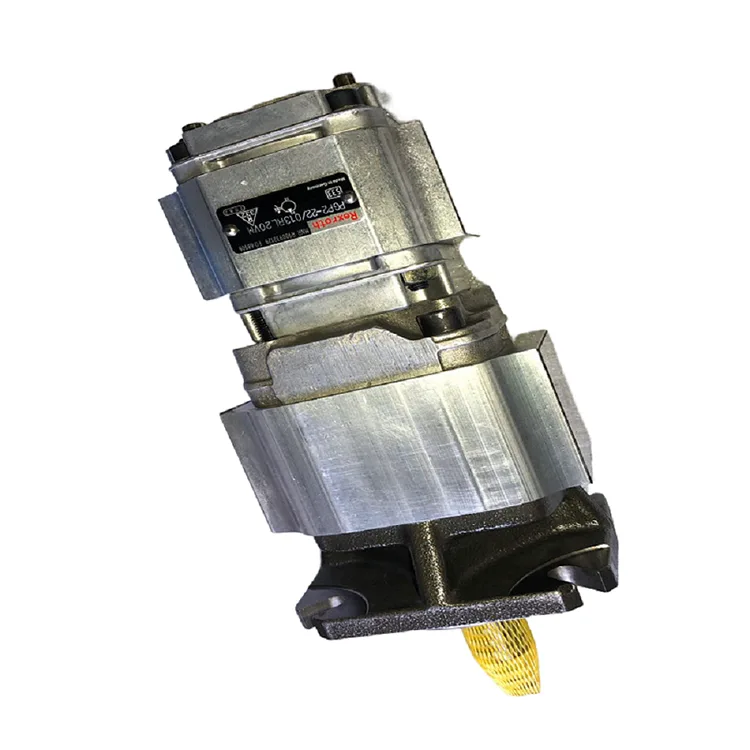

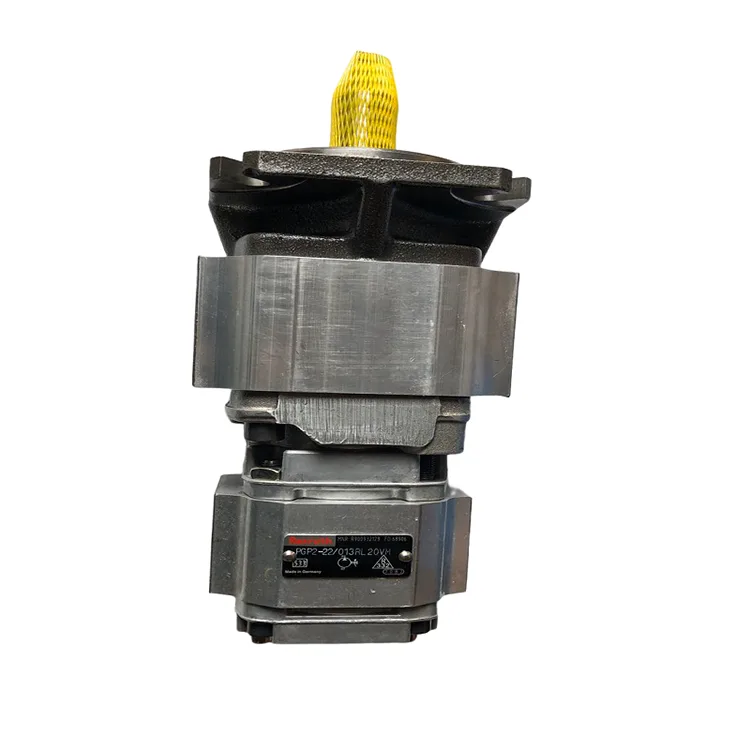

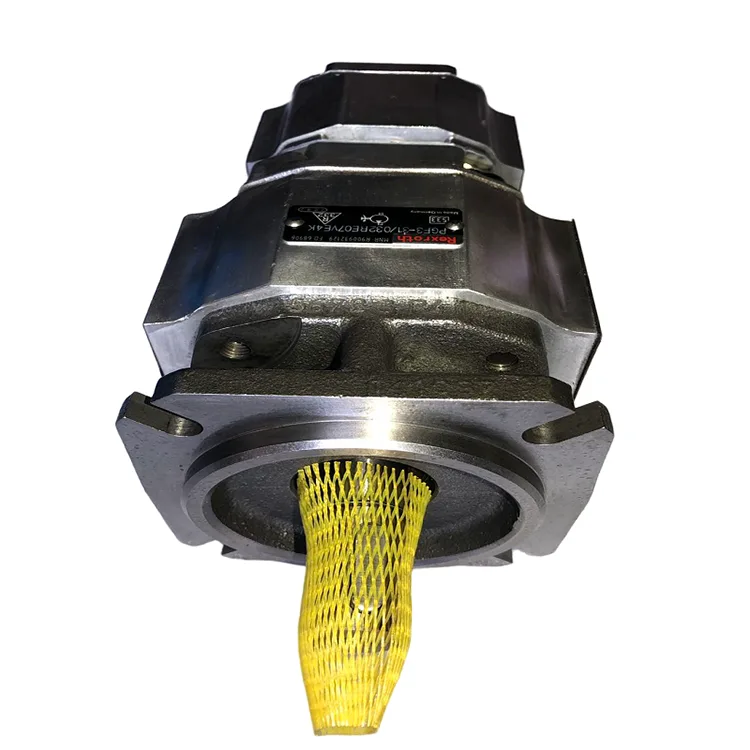

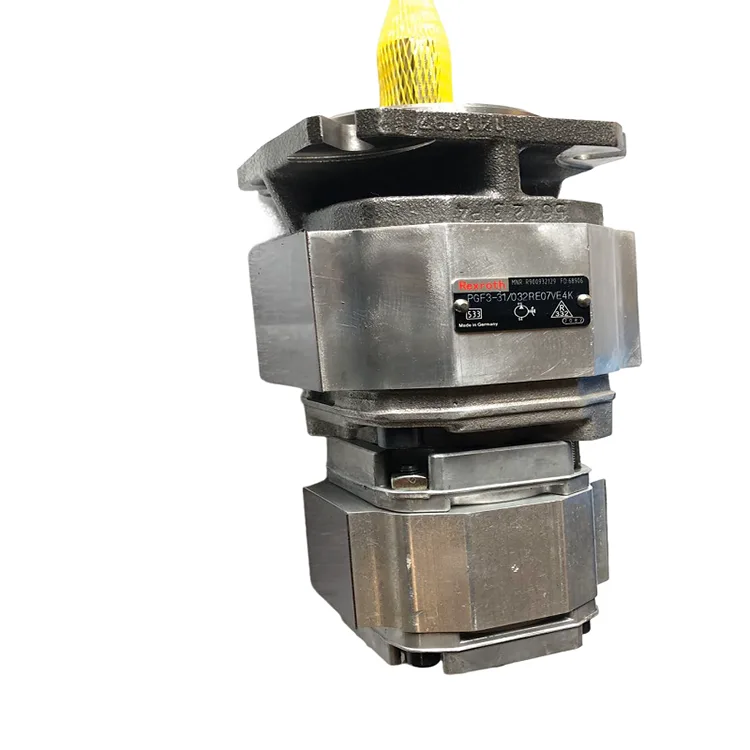

PGP511A0040CS1D4NE5E3B1B1 Gear Pump

As a reliable China factory manufacturer and supplier of industrial hydraulic components, Hengmeisi independently develops and produces the high-performance PGP511A0040CS1D4NE5E3B1B1 gear pump, which is a core upgraded model of the classic PGP511 series hydraulic gear pump. Different from traditional ordinary gear pumps that are prone to large pressure fluctuation, loud noise and rapid wear, this PGP511A0040CS1D4NE5E3B1B1 pump adopts a newly optimized helical gear meshing structure and full pressure balance design, thoroughly solving the common pain points of conventional gear pumps in long-term continuous operation. With stable flow output, low vibration and strong environmental adaptability, it can continuously work efficiently in complex working conditions such as dust, humidity and medium fluid pollution, greatly reducing the failure rate of the hydraulic system and equipment maintenance costs. The whole pump adopts high-strength cast iron shell and wear-resistant alloy steel core parts, with precise CNC finishing process, ensuring dimensional accuracy and assembly tightness. It is compatible with a variety of hydraulic media, wide temperature adaptation range, and can replace imported brand gear pumps in batches, with extremely high cost performance and practical value.

The PGP511A0040CS1D4NE5E3B1B1 breaks through the performance limitations of traditional gear pumps in the market. Most ordinary gear pumps can only adapt to low-pressure and light-load working conditions, and are easy to have internal leakage and pressure attenuation after long-term use. In contrast, this upgraded PGP511 series gear pump realizes balanced hydraulic force through internal groove optimization design, effectively offsetting the axial and radial pressure generated during operation. This structural innovation not only improves the overall pressure resistance of the pump body, but also greatly extends the service life of bearings, gears and other vulnerable parts. Whether it is intermittent operation of engineering machinery or 24-hour continuous operation of industrial supporting equipment, it can maintain stable working state and consistent output efficiency.

Core Product Advantages

1. Optimized Helical Gear Design, Ultra-low Noise and Low Pulsation

Most traditional gear pumps use straight gear meshing, which will produce instantaneous impact and large pressure pulsation during operation, resulting in loud working noise and unstable system operation. The PGP511A0040CS1D4NE5E3B1B1 adopts a precision modified helical gear structure. The gear teeth engage gradually and continuously, avoiding instantaneous impact during meshing. This design reduces the operating noise by 15-20dB compared with ordinary gear pumps, and the internal flow pulsation rate is controlled within 2%. It can provide ultra-stable hydraulic power for precision mechanical equipment and indoor working equipment, and will not cause equipment vibration or working accuracy deviation due to hydraulic fluctuation.

2. Full Pressure Balance Structure, Durable and Wear-resistant

This PGP511 series gear pump is equipped with a unique internal pressure balance groove system, which can evenly distribute the high-pressure hydraulic oil acting on the gear and the end face of the pump body. It completely eliminates the unbalanced lateral force that plagues ordinary gear pumps, avoids eccentric wear of gears, bearings and end covers, and fundamentally reduces internal leakage caused by part wear. Under the rated working pressure of 250bar, the pump body will not deform or displace, and the sealing performance is always stable. Compared with ordinary gear pumps of the same specification, its service life is increased by more than 35%, and it can adapt to long-term high-load continuous operation.

3. Strong Anti-pollution Ability, Low Maintenance Cost

Different from precision plunger pumps that have extremely high requirements on hydraulic fluid cleanliness, the PGP511A0040CS1D4NE5E3B1B1 has a moderate internal gap and excellent anti-impurity performance. It can work normally in hydraulic systems with slight particle impurities and unfiltered fine pollutants, and is very suitable for harsh working environments such as construction sites, farmland operations and outdoor machinery. The modular disassembly structure is adopted for the whole pump, and the vulnerable parts such as seals and bearings are standardized parts, which are easy to replace and maintain. Customers do not need to spend high cost on daily maintenance and fluid precision filtration, effectively reducing the overall operating cost of the equipment.

4. Compact Modular Design, Easy Installation and Wide Compatibility

The overall structure of the PGP511A0040CS1D4NE5E3B1B1 is compact and lightweight, with a standardized SAE mounting flange and interface size, which is fully compatible with most mainstream hydraulic equipment on the market. It supports flexible installation methods such as horizontal and vertical installation, and can be perfectly adapted to limited installation space of small and medium-sized machinery and equipment. At the same time, the product supports personalized configuration of shaft type, rotation direction and valve group, which can meet the customized matching needs of different industrial equipment and mobile machinery, with extremely high versatility.

Model Code Interpretation

The model of PGP511A0040CS1D4NE5E3B1B1 adopts international unified coding rules, and each code corresponds to independent performance parameters and structural configuration, which is convenient for customers to quickly confirm product specifications and verify matching degree:

Product Structure Introduction

The PGP511A0040CS1D4NE5E3B1B1 gear pump adopts a three-stage assembly structure of front cover, middle pump body and rear cover, with tight assembly and reasonable structural layout. The core components are all made of high-precision processed materials to ensure overall stability and durability:

1. Precision Helical Gear Core: The driving and driven gears are made of high-quality alloy steel after overall quenching and tempering treatment and surface precision grinding. The gear tooth accuracy reaches IT5 level, with tight meshing clearance and minimal internal leakage. The helical tooth structure ensures continuous and stable fluid delivery, avoiding flow interruption and pressure fluctuation.

2. Pressure Balance System: The built-in precision balance groove on the end face of the pump body can dynamically balance the hydraulic pressure on both sides of the gear set, eliminate eccentric wear, and keep the gap between the gear and the end cover stable for a long time, which is the core structure to ensure the long service life of the pump.

3. Multi-layer Sealing Assembly: It adopts imported composite sealing materials, which are resistant to high temperature, high pressure and oil corrosion. The multi-channel sealing design of shaft seal, end cover seal and interface seal realizes full-range leakage prevention, and can work stably in the temperature range of -30℃ to 100℃.

4. Reinforced Bearing Component: Equipped with high-precision double-row roller bearings, which can bear radial and axial bidirectional loads, reduce rotation resistance, ensure flexible operation of the gear set, and effectively avoid jamming and abnormal noise caused by bearing wear.

Technical Parameter Table

Application Scenarios

With stable performance, strong adaptability and high cost performance, the PGP511A0040CS1D4NE5E3B1B1 is widely used in various mobile machinery and general industrial hydraulic equipment, covering multiple industry fields:

1. Agricultural Machinery: It is matched with hydraulic systems of tractors, harvesters, agricultural sprayers and fertilizing equipment, adapting to outdoor complex working conditions such as farmland dust and humidity, and providing stable power support for agricultural machinery operation.

2. Logistics Handling Equipment: Suitable for electric forklifts, internal combustion forklifts, pallet trucks and conveyor hydraulic power units, with low noise and stable flow, ensuring smooth and accurate handling operations.

3. Small Construction Machinery: Matched with mini excavators, skid steer loaders, road rollers and other equipment, it can withstand frequent start-stop and high-load operation, and adapt to harsh construction site environments.

4. General Industrial Equipment: Used for hydraulic presses, drilling machines, lathes, hydraulic power stations and other industrial machine tools, ensuring high-precision and stable operation of industrial production equipment and improving production efficiency.

5. Special Auxiliary Equipment: It can also be used for small marine hydraulic equipment, environmental protection equipment and sanitation machinery, with wide application coverage and strong universal matching ability.
